WINISO® 15099

Name: WINISO® 15099
Brand: winiso-software.com
Price: 3400 USD
Availability: InStock

$3,400.00

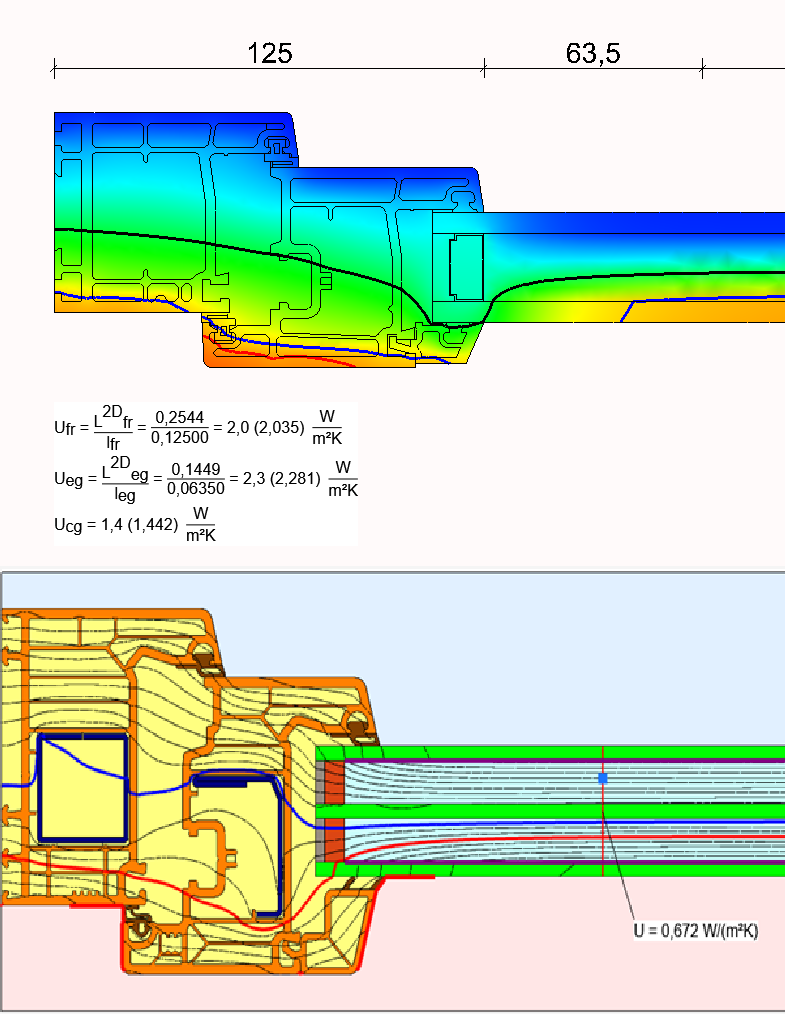

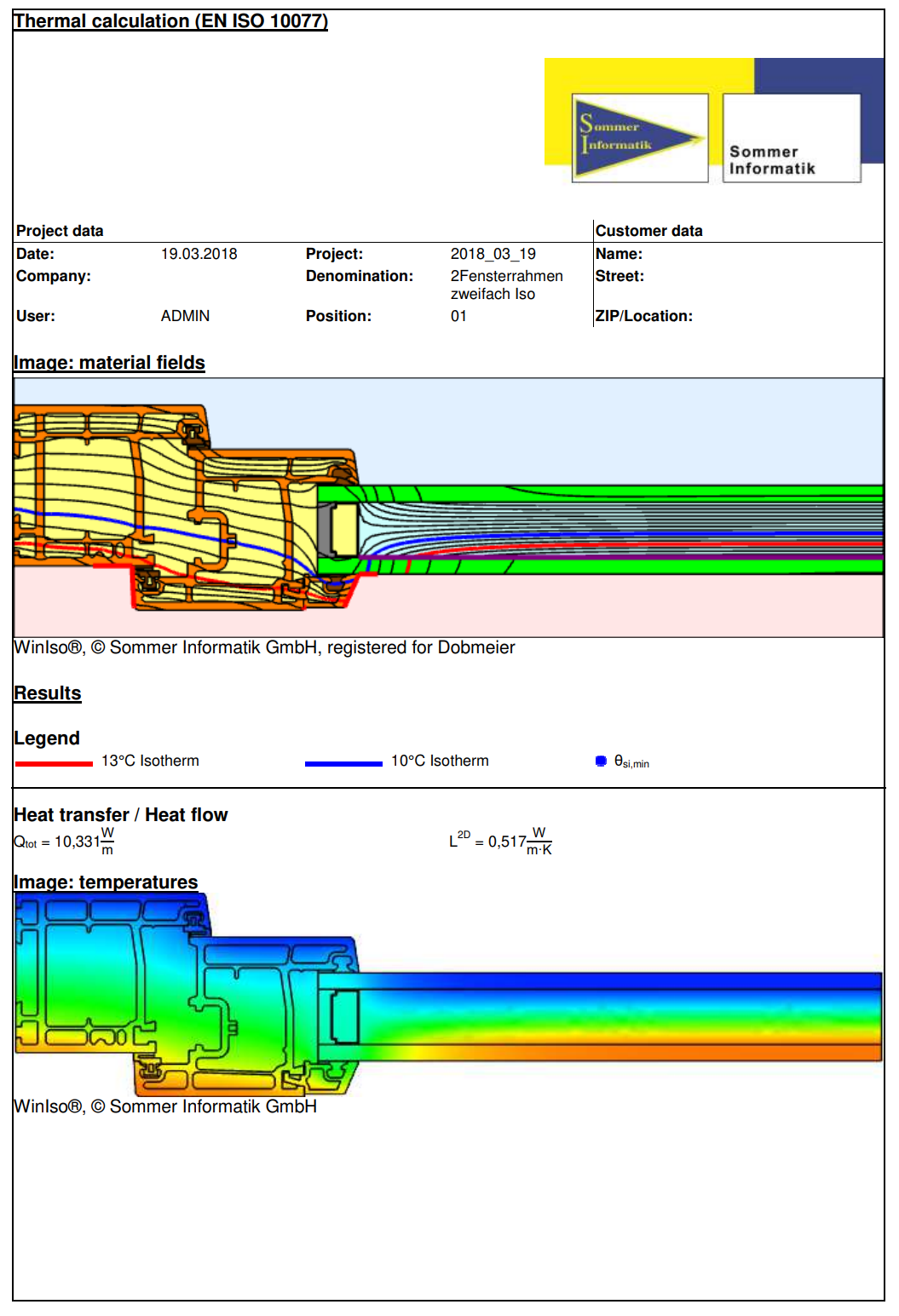

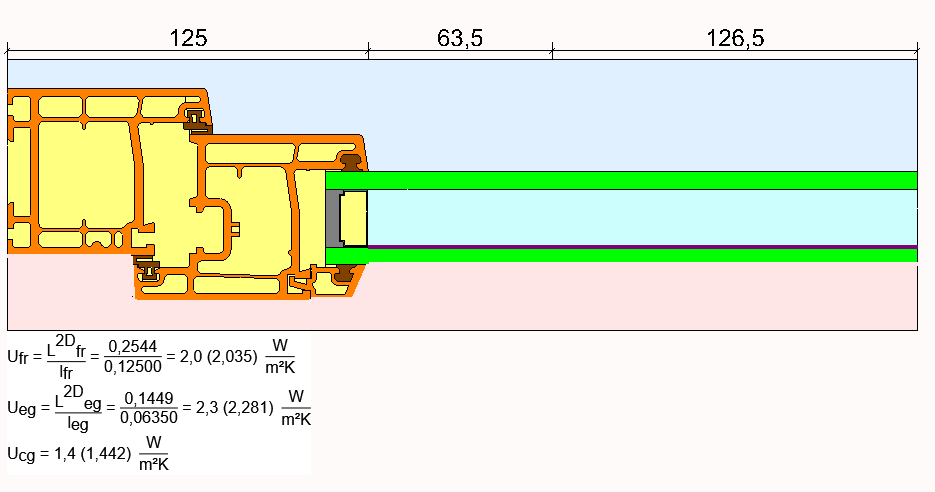

Calculation of heat flows, thermal bridges, isotherms and Uf values according to EN ISO 10077-2:2018 as well as Ufr, Ueg and Ucg values according to ISO 15099 and NFRC.

34003400

WINISO® - Humidity

$800.00

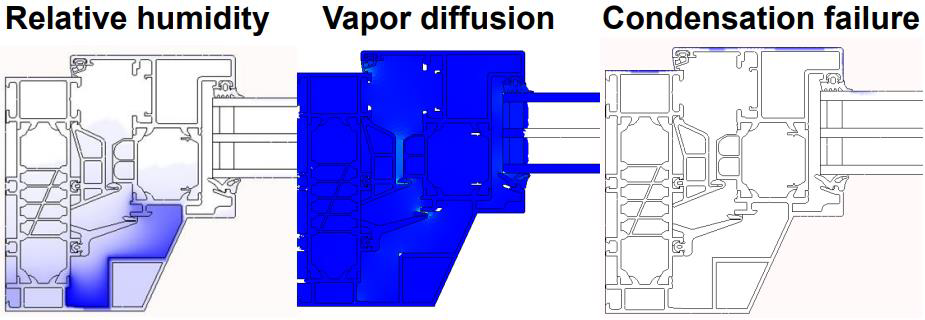

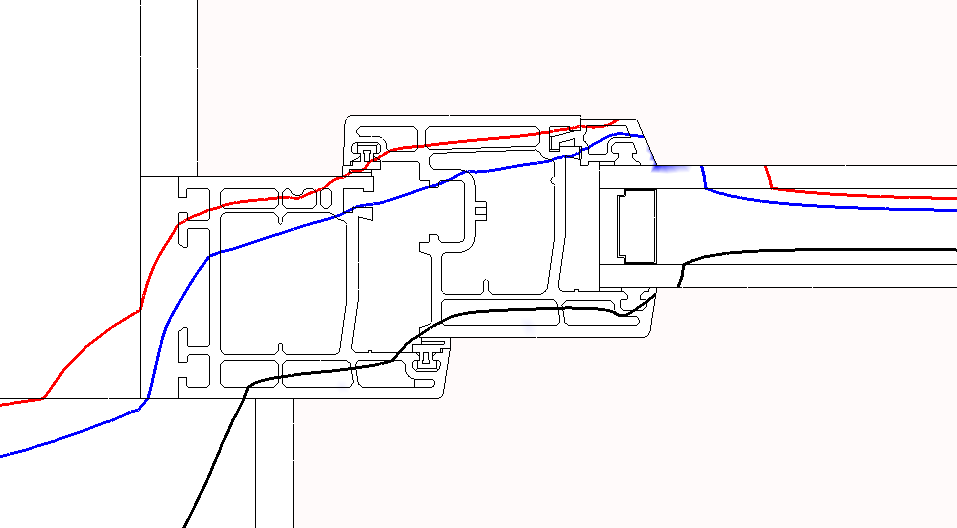

The "Humidity" module enables the calculation of relative humidity, vapour diffusion and condensation water loss on the basis of the heat flow calculation of the overall model.

Humidity_WINISO_Window_Frame_Condensation_Water_Vapor_Diffusion_

WINISO® - Batch processing

$600.00

With the WINISO® batch processing you have the possibility to have several WINISO® files calculated automatically one after the other.

The calculated files and images are automatically saved in the same directory as the project files.

WINISO® - 3D

$4,000.00

Imported 3D CAD data can be intuitively and efficiently cleaned of errors and prepared.

The essential details can be worked out specifically and true to the original from extensive and complex source data.

After simple processing and a short calculation time, the FEM calculation kernel delivers the thermal properties of the detail with maximum accuracy.

WINISO SOFTWARE - Network/Terminal Server

If you plan to launch this program from a network share or on a terminal server, you need an according add-on.

With the Network/Terminal Server Add-on, one license allows you to install and use the program on up to 3 devices, with 1 user at a time.

When you purchase additional licenses of the same product, your usage expands accordingly — you do not need to buy the add-on again.
For example:

💻 1 license = up to 3 devices, 1 user at a time

💻 2 licenses = up to 6 devices, 2 users at a time

💻 3 licenses = up to 9 devices, 3 users at a time

SommerGlobal Cloud

Yearly Subscription

$100.00

✅ Save local calculations from SommerGlobal in the cloud

✅ Retrieve calculations from the cloud regardless of location

✅ Load and edit positions anytime, anywhere

✅ View proofs as documents on mobile

✅ Up to 1000 positions

Training

Contract of use

The Price of the Contract of use will be calculated at the Check Out

According to our licence terms, the conclusion of a contract of use is mandatory and is invoiced annually in advance. The contract of use includes free software maintenance, updates and servicing.

Addons Price: $0.00

Total Price: $3,400.00

Category: softwares

Description

Why WINISO®?

Certified by independent testing institutes
Results are internationally recognised
Extremely user-friendly operation
Reliable partner for long-term customer satisfaction
Market-ready solutions even before the relevant laws and standards are passed, together with permanent updating – our solutions are always up to date

Imported CAD files can be prepared by automatic detection and correction of CAD errors. Thus, complicated components and systems can be analysed and calculated with short computing times and small data sizes. The integrated FEM calculation kernel enables the most accurate results.

Features

Highly automated geometry preparation of CAD data (.dxf & .dwg)
Detailed transfer of CAD data incl. radii and bevels
New solver and new calculation core with automatic FEM meshing
Automatic FEM meshing can be controlled flexibly and specifically, resulting in high calculation speeds

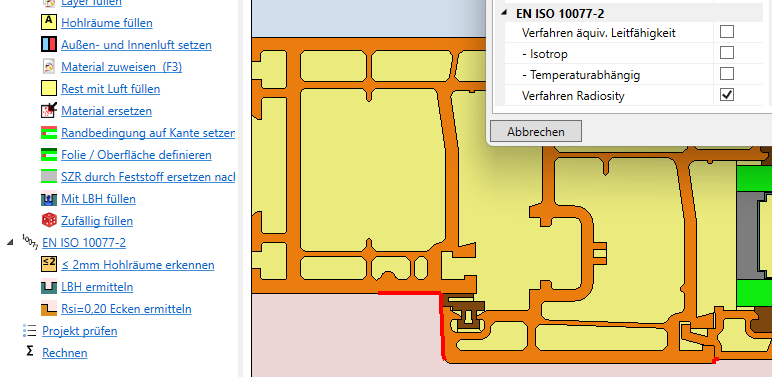

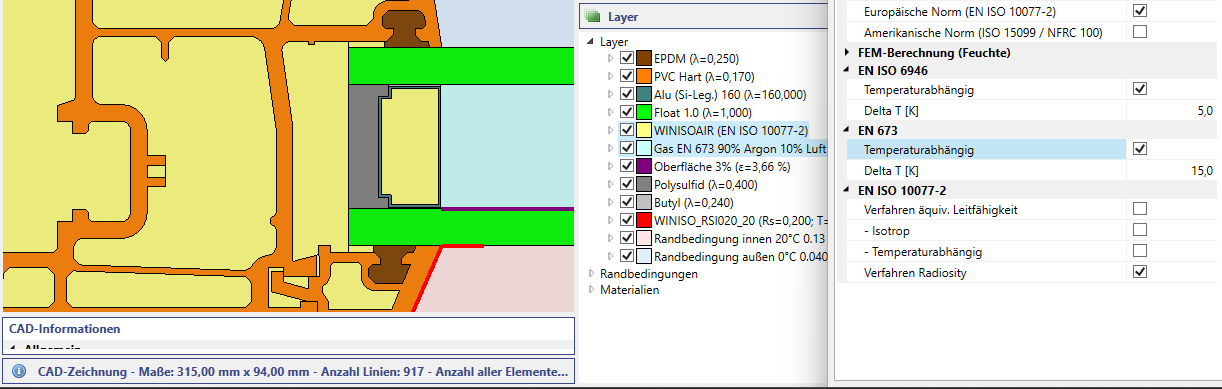

Calculation according to the “radiosity model” (new cavity model according to EN ISO 10077-2:2018) and with equivalent conductivity (EN ISO 10077-2:2012/2018)
Simple definition of foils, coatings and surface properties using line drawings
Automatic material allocation based on CAD layers
Gas filling for inter-pane spaces according to DIN EN 673 freely mixable

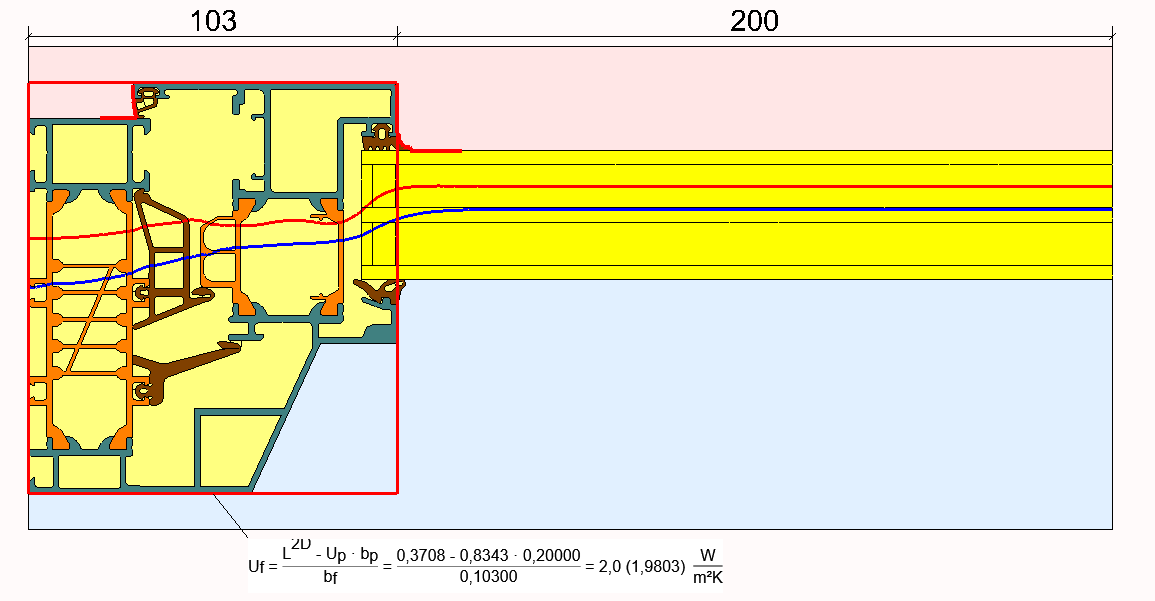

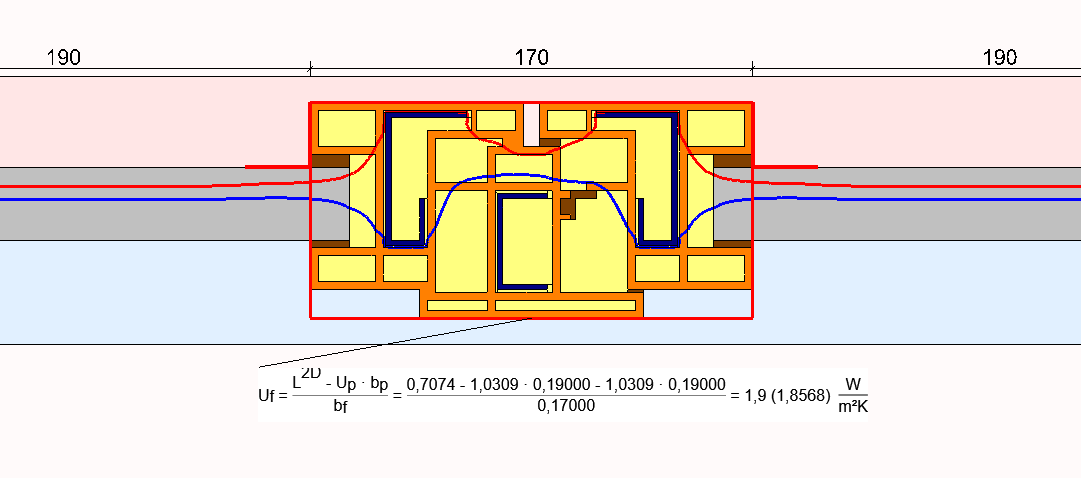

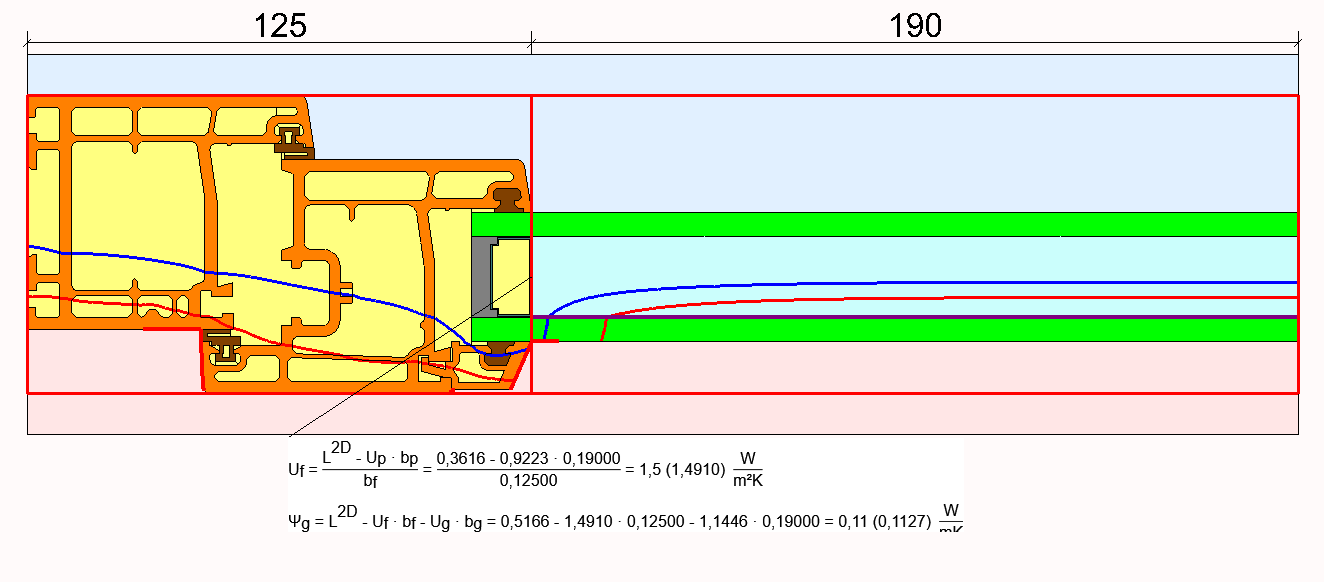

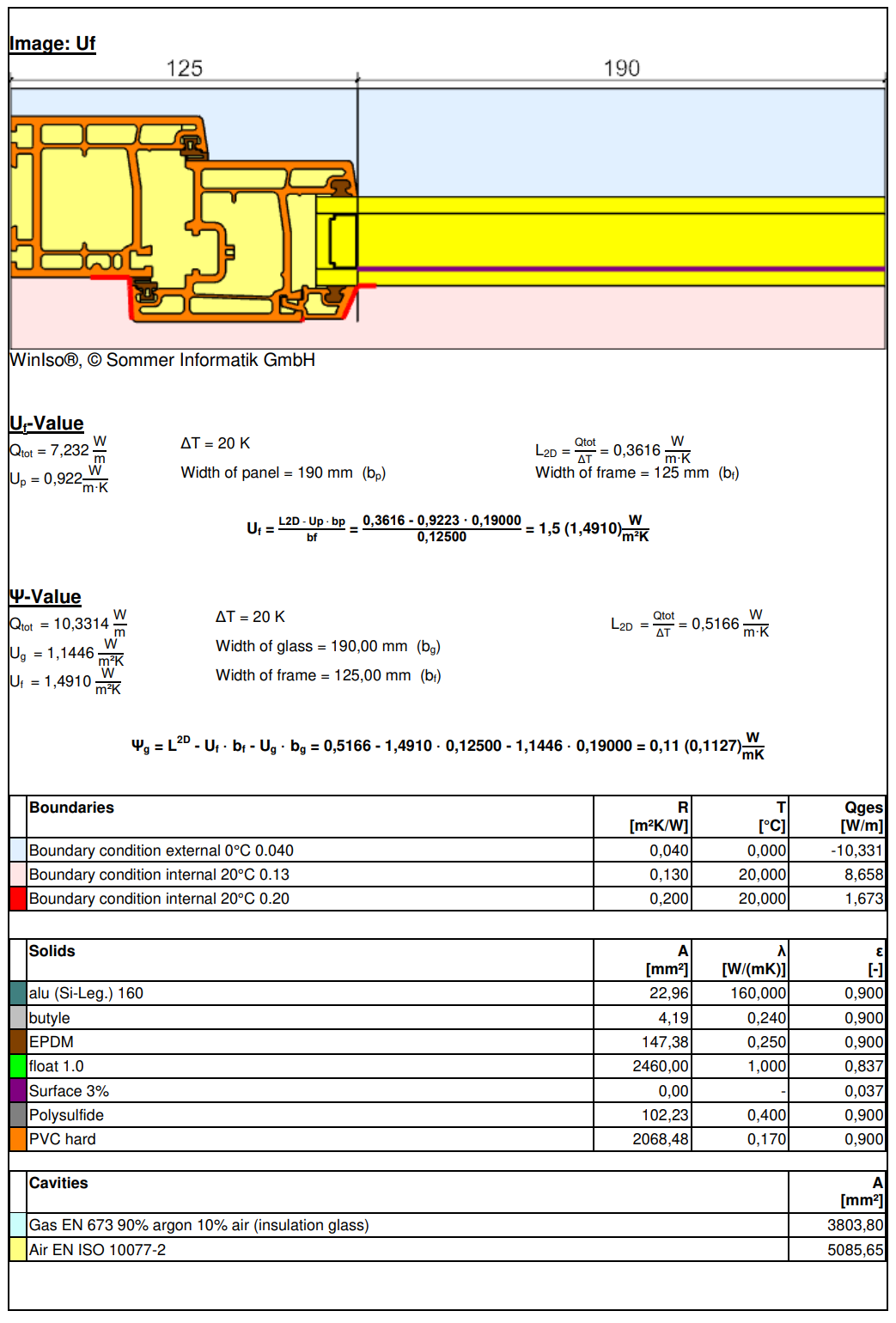

Automated Uf calculation of window and façade profiles

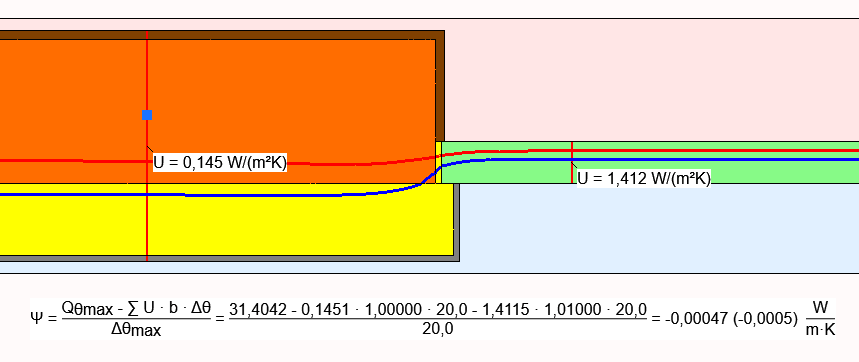

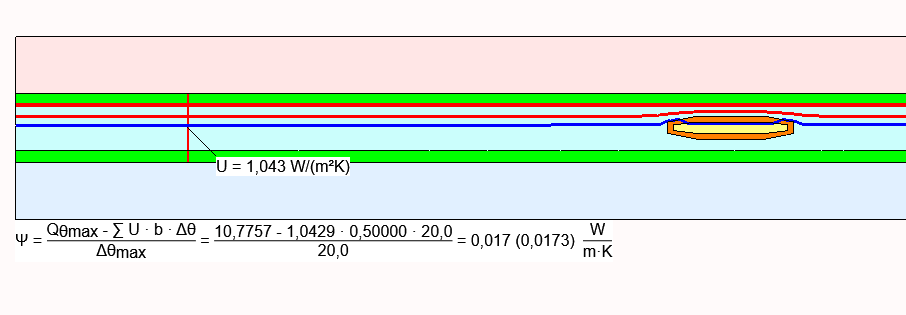

Psi-values of thermal bridges and insulating glass spacers according to EN ISO 10211 and EN ISO 10077-2

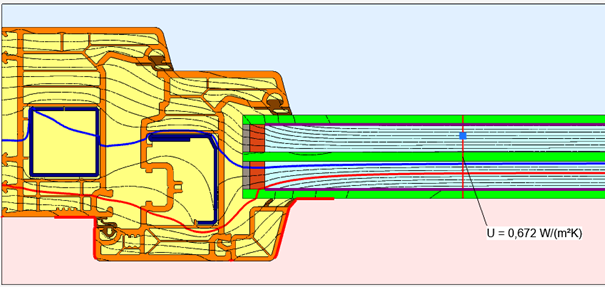

Ug-values of multi-pane insulating glass according to EN 673
U-values of any construction according to EN ISO 6946

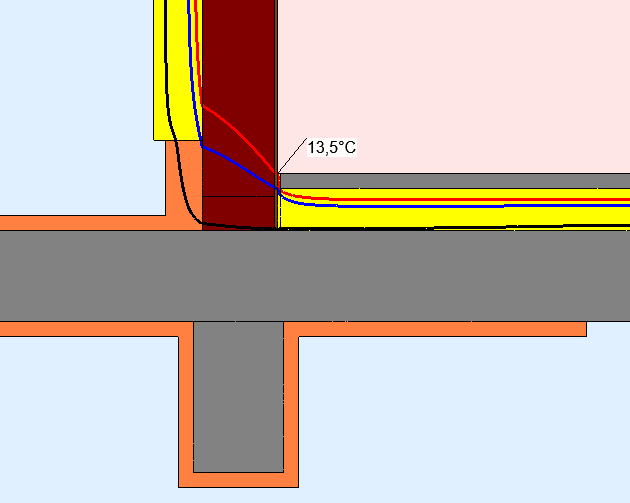

Calculation of isotherms, surface temperatures and temperature factor according to DIN 4108-2/-3
