WINISO® 15099

Ufr, Ueg, Ucg as well as Uf, Ψg, U, Ψ, thermal bridges, isotherms, fRsi

GLASGLOBAL® ASTM

Powerful glass statics calculation according to ASTM E1300

WINSLT® 15099

Ug-Value, g-Value, Reflection, Absorption, Transmission, gtot-Value, SHGC-Value

WINTHS® 15099

Professional calculation
of thermal stress on glass surfaces

Software for YOUR SUCCESS THERMAL BRIDGES ISOTHERMS MOLD RISK CONDENSATION RISK CE MARKING THERMAL STRESS GLASS STATIC SOUND CERTIFICATES

GLOBAL MARKET PRESENCE

CONTINUOUSLY UPDATED SOFTWARE

TRUSTED CALCULATION RESULTS

INTERNATIONALLY RECOGNIZED

CERTIFIED BY INDEPENDENT INSTITUTES

Highly qualified software solutions in the fields of building physics and static calculation of windows, facades and glass.

Software portfolio

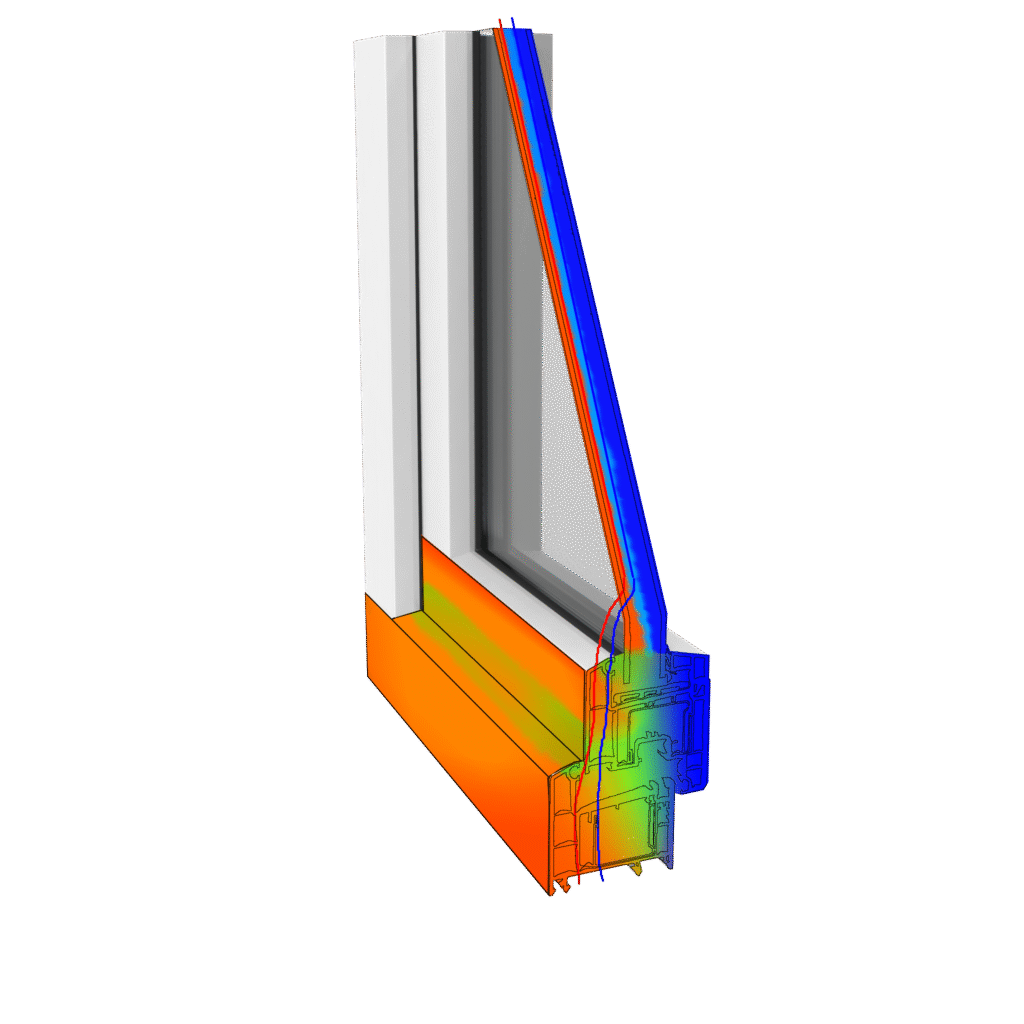

WINISO® 15099

Uf, Ψg, U, Ψ, thermal bridges, isotherms, fRsi, mold and condensation risk

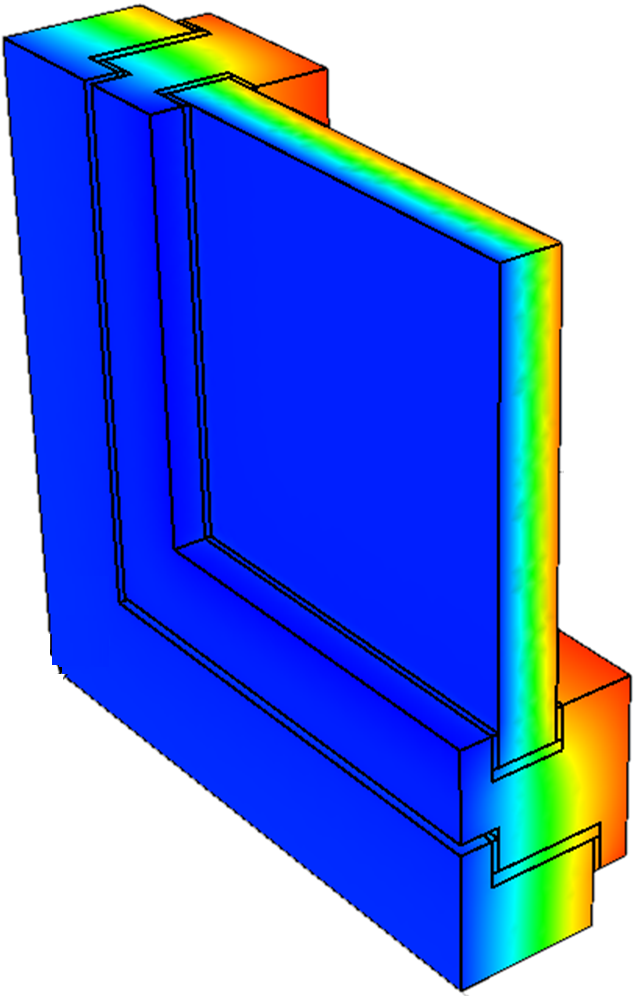

Software for detailed thermal performance and heat flow analysis of window and facade components. It calculates Uf-values, Ψ-values (linear thermal bridges), heat flows, isotherms and temperature fields according to EN ISO 10077-2 and also Ufr, Ueg and Ucg values based on ISO 15099 / NFRC. Supports 3D thermal bridge analysis and highly automated CAD geometry import (DWG/DXF), with FEM-based calculations.

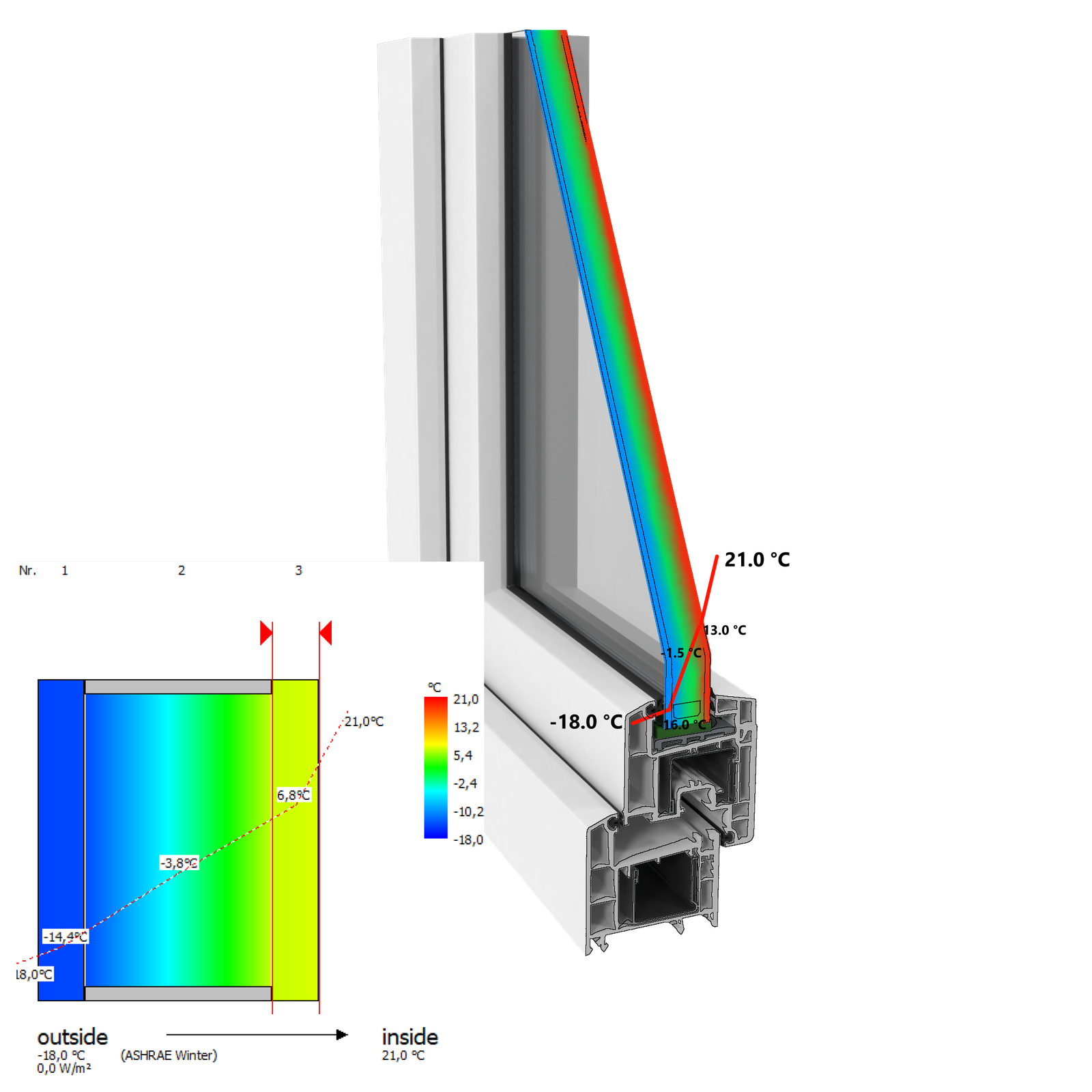

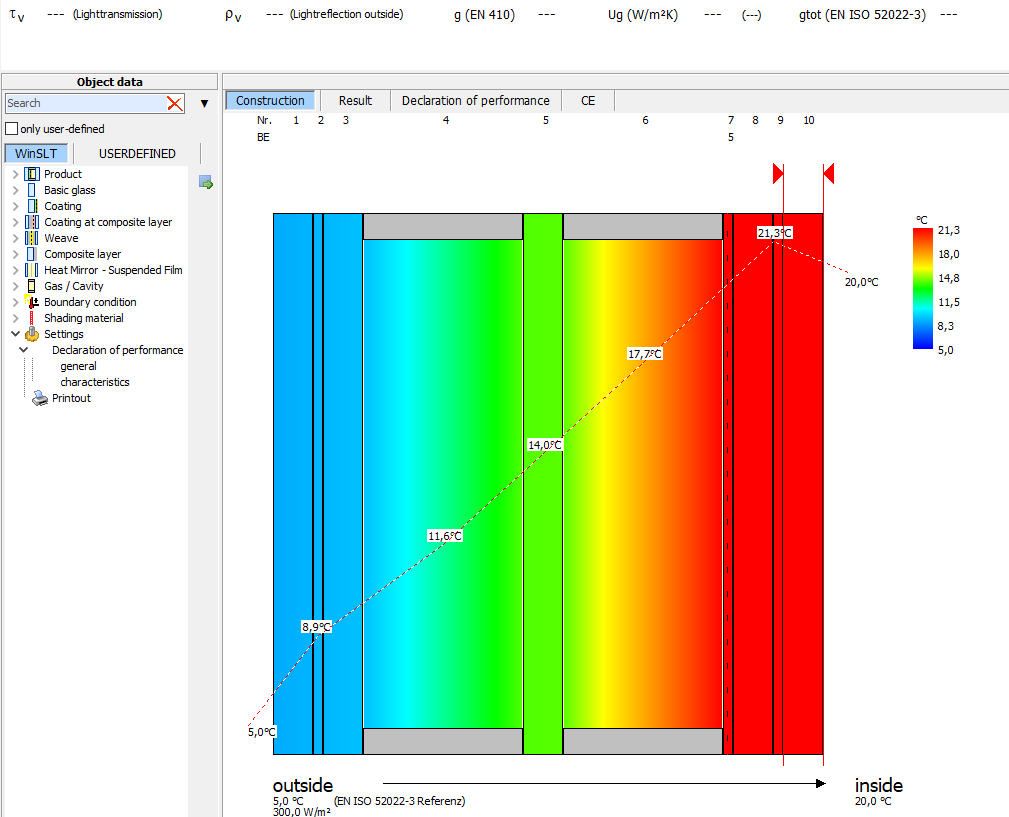

WINSLT® 15099

Ug (Winter/Summer) according to NFRC 100, g, gtot

Professional software to calculate light, solar and thermal characteristics of glazing (e.g., Ug, g, gtot, SHGC etc.) for glass assemblies — particularly with solar shading. It works with standards such as EN 410, EN ISO 673, EN ISO 52022-3 and ISO 15099, and creates performance data for Declarations of Performance and CE marking. Supports custom spectral data and extensive material libraries.

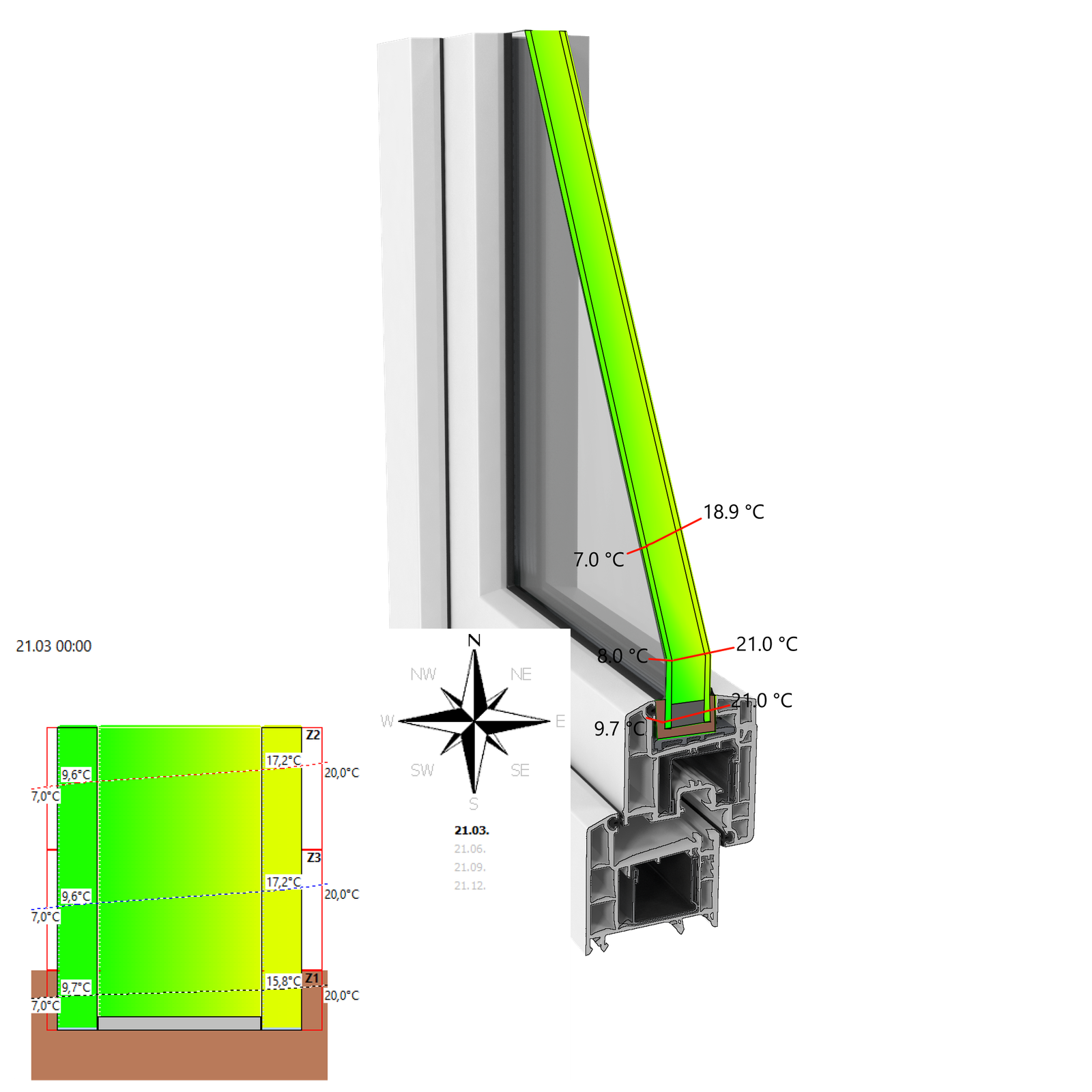

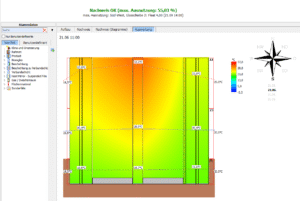

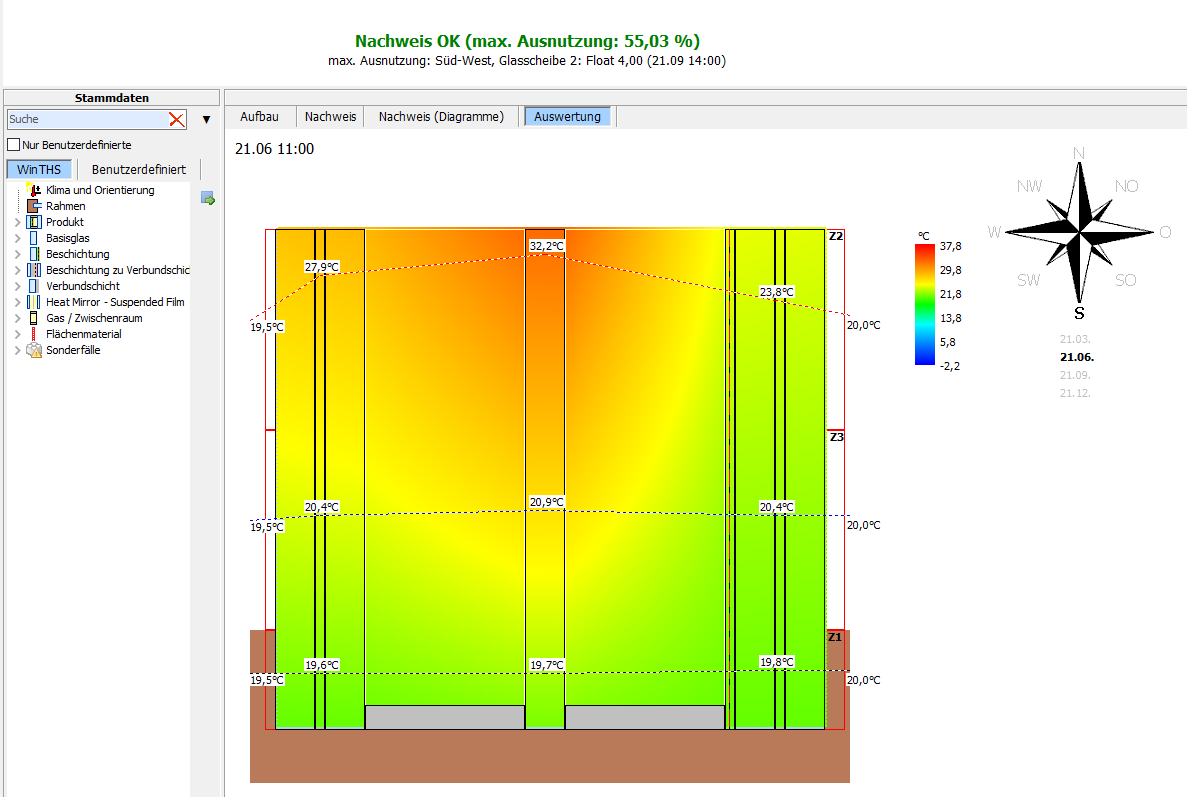

WINTHS® 15099

Thermal stress analysis for glazing

Professional software for calculating thermal stresses, temperature differences and critical temperature conditions in glazing. WINTHS® evaluates thermal stress, allowable stress, utilization and glass pane temperatures to assess the risk of thermally induced glass breakage. The calculation can consider glazing configuration, frame conditions, orientation, climate and partial shading, making it suitable for detailed analysis of demanding glazing situations. Calculations can be performed in accordance with NF DTU 39 P3.

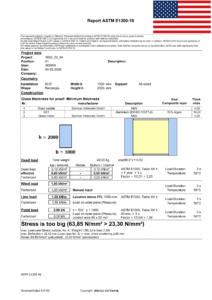

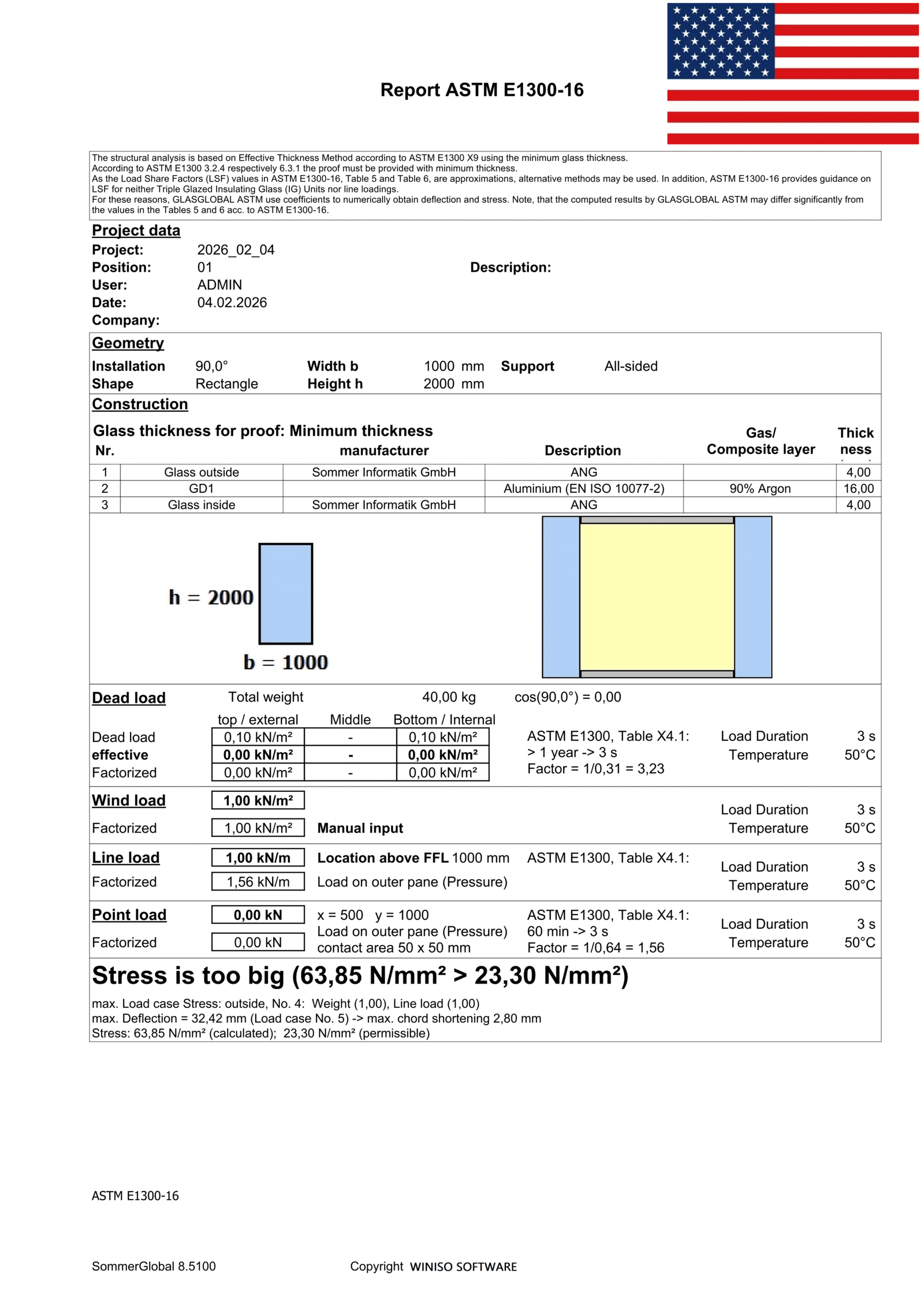

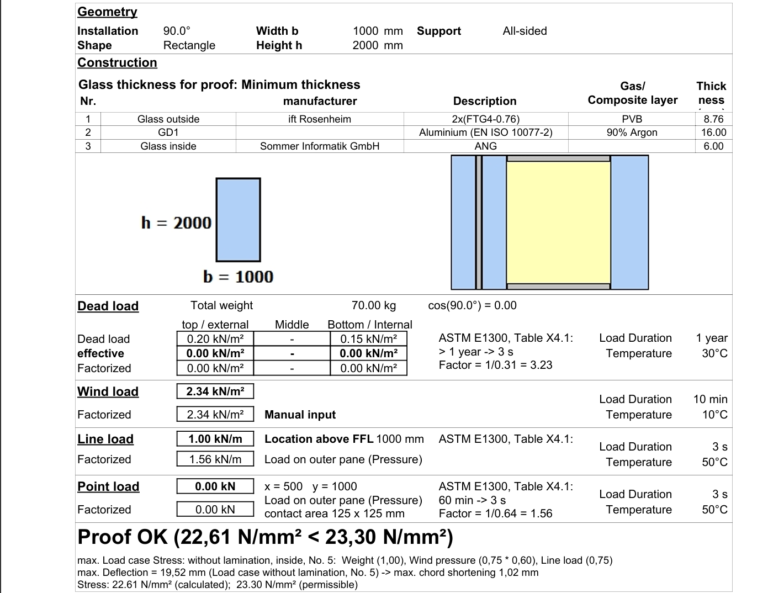

GLASGLOBAL® ASTM

Glass statics according to ASTM

GLASGLOBAL® ASTM specialized for glass structural design based on the ASTM E1300 standard. It performs static structural analysis of glass panels and laminated glass (VSG) under loads such as snow, wind, dead weight and thermal loads, checking stresses and deflections against allowable limits and producing clear result reports.
