WINISO® 15099 – Thermal Bridge Calculation Software

3.400,00 $

Professional thermal bridge calculation software for Uf, Psi, isotherms and U-values for windows, facades and glazing systems.

34003400
WINISO® - Humidity
800,00 $

The "Humidity" module enables the calculation of relative humidity, vapour diffusion and condensation water loss on the basis of the heat flow calculation of the overall model.

Humidity_WINISO_Window_Frame_Condensation_Water_Vapor_Diffusion_
WINISO® - Batch processing
600,00 $

With the WINISO® batch processing you have the possibility to have several WINISO® files calculated automatically one after the other.

The calculated files and images are automatically saved in the same directory as the project files.

WINISO® - 3D
4.000,00 $

Imported 3D CAD data can be intuitively and efficiently cleaned of errors and prepared.

The essential details can be worked out specifically and true to the original from extensive and complex source data.

After simple processing and a short calculation time, the FEM calculation kernel delivers the thermal properties of the detail with maximum accuracy.

WINISO® - Network/Terminal Server
*
If you plan to launch this program from a network share or on a terminal server, you need an according add-on.
single user
0,00 $
network
3.000,00 $
terminalserver
5.000,00 $

With the Network/Terminal Server Add-on, one license allows you to install and use the program on up to 3 devices, with 1 user at a time.

When you purchase additional licenses of the same product, your usage expands accordingly — you do not need to buy the add-on again.
For example:

💻 1 license = up to 3 devices, 1 user at a time

💻 2 licenses = up to 6 devices, 2 users at a time

💻 3 licenses = up to 9 devices, 3 users at a time

SommerGlobal Cloud
100,00 $

✅ Save local calculations from SommerGlobal in the cloud

✅ Retrieve calculations from the cloud regardless of location

✅ Load and edit positions anytime, anywhere

✅ View proofs as documents on mobile

✅ Up to 1000 positions

Training
training video (3 hours)
99,00 $
web meeting (3 hours)
550,00 $

Contract of use

The Price of the Contract of use will be calculated at the Check Out

According to our licence terms, the conclusion of a contract of use is mandatory and is invoiced annually in advance. The contract of use includes free software maintenance, updates and servicing.

Addons Price: 0,00 $
Total Price: 3.400,00 $
Category:

Thermal bridge calculation software for Uf values, Psi values and isotherms

WINISO thermal bridge calculation software overview with Uf-value, U-value, Psi-value, FEM and CAD functions

WINISO® is professional thermal bridge calculation software for windows, façades, glazing systems and construction details. It enables accurate calculation of Uf values, Psi values, Ug values, U-values, isotherms, surface temperatures and temperature factors, while supporting major standards such as EN ISO 10077-2, EN ISO 10211, EN 673, EN ISO 6946 and DIN 4108-2/-3.



Designed for practical engineering use, WINISO® combines highly automated CAD preparation, flexible FEM meshing and fast calculation times with user-friendly operation. Imported CAD files can be prepared through automatic detection and correction of CAD errors, allowing even complicated components and systems to be analysed efficiently with short computing times and small data sizes. The integrated FEM calculation kernel ensures highly accurate results for professional thermal analysis.

WINISO® offers a combination of technical precision, practical usability and long-term reliability:

  • Certified thermal bridge calculation software by independent testing institutes
  • Results are internationally recognised
  • Extremely user-friendly operation
  • Reliable partner for long-term customer satisfaction
  • Market-ready solutions even before the relevant laws and standards are passed, together with permanent updating – our solutions are always up to date

WINISO® includes a wide range of advanced functions for thermal bridge calculation, window and facade analysis, and construction thermal performance assessment:

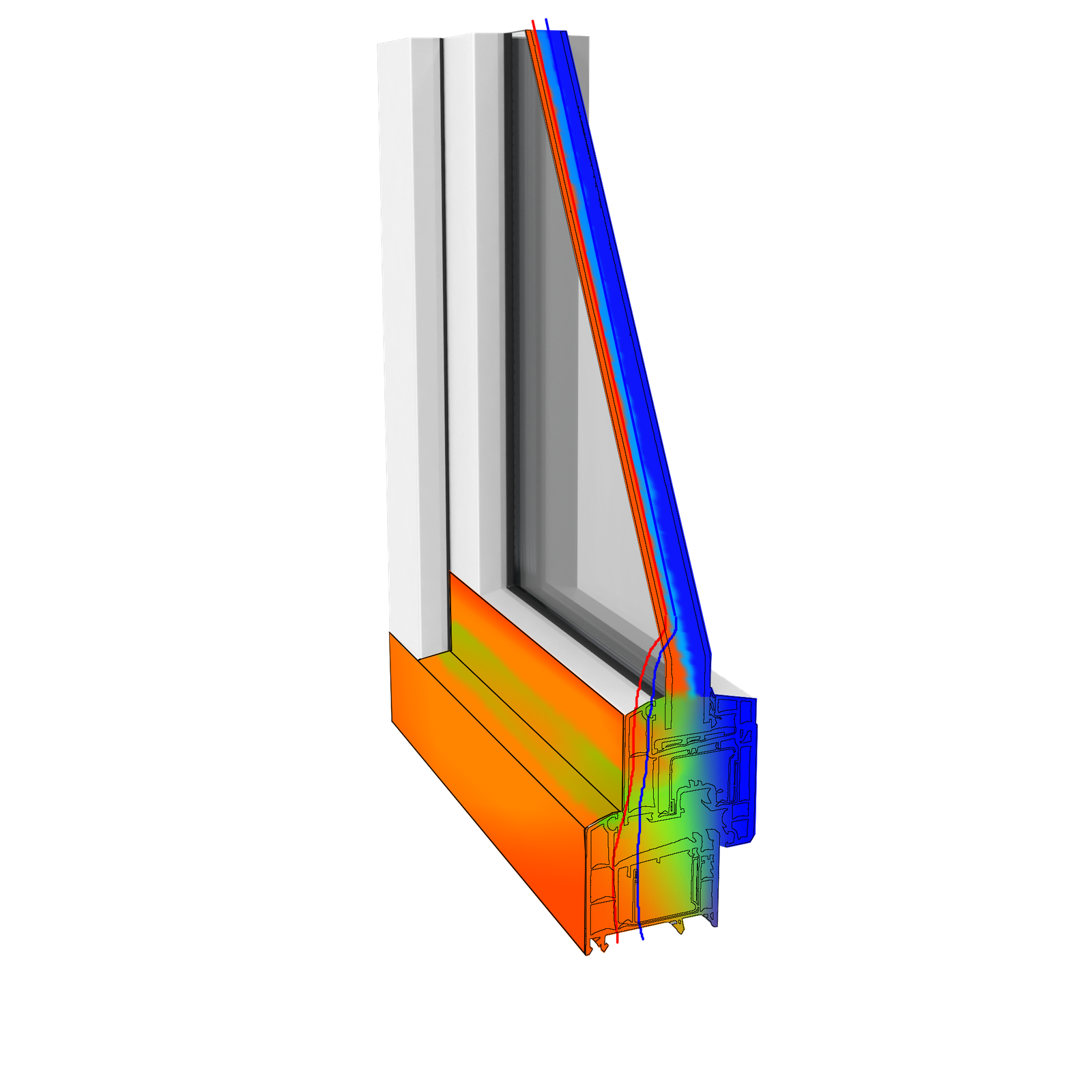

Thermal simulation of a window profile showing temperature distribution and Uf, Ueg and Ucg values

  • Highly automated geometry preparation of CAD data (.dxf & .dwg)
  • Detailed transfer of CAD data including radii and bevels
  • New solver and new calculation core with automatic FEM meshing
  • Automatic FEM meshing can be controlled flexibly and specifically, resulting in high calculation speeds
  • Calculation according to the radiosity model (new cavity model according to EN ISO 10077-2:2018) and with equivalent conductivity (EN ISO 10077-2:2012/2018)
  • Simple definition of foils, coatings and surface properties using line drawings
  • Automatic material allocation based on CAD layers
  • Gas filling for inter-pane spaces according to DIN EN 673, freely mixable
  • AutomatedUf calculationof window and façade profiles
  • Psi-valuesof thermal bridges and insulating glass spacers according toEN ISO 10211andEN ISO 10077-2
  • Ug-valuesof multi-pane insulating glass according toEN 673
  • U-valuesof any construction according to EN ISO 6946
  • Calculation ofisotherms, surface temperatures and temperature factoraccording toDIN 4108-2/-3







Efficient CAD-based thermal analysis for thermal bridge calculation of

window and facade

WINISO® is developed to simplify the transition from CAD data to reliable thermal calculation. Thanks to automated geometry preparation, detailed CAD transfer, and automatic correction of CAD errors, users can process complex profile geometries and construction details with minimal manual effort.

The software supports highly accurate FEM-based calculation while keeping data sizes compact and computing times short. This makes WINISO® especially suitable for professionals who need dependable results in engineering, façade development, window design and product performance verification.



Standards-based calculation software for thermal bridges, Uf values, Psi values, Ug values, U-values, Isothermes

WINISO® supports thermal and structural calculation workflows based on widely used national and international standards. Depending on the application, calculations can be performed for:

  • Uf values according to EN ISO 10077-2
  • Psi values for thermal bridges and spacers according to EN ISO 10211 and EN ISO 10077-2
  • Ug values according to EN 673
  • U-values of constructions according to EN ISO 6946
  • Isotherms, surface temperatures and temperature factors according to DIN 4108-2/-3

In addition, the implementation of the radiosity model and equivalent conductivity methods supports advanced and standard-compliant analysis of cavities and thermal performance.

Example window calculations by WINISO Software

winiso®PVC-window: Uf and ψg according EN ISO 10077-2

Calculation of frame U value Uf and edge bond ψ value ψg according to EN ISO 10077-2 for a PVC window

🖨 Report



winiso®Alu-window: Uf according EN ISO 10077-2

Calculation of frame U value Uf according to EN ISO 10077-2 for an aluminium window

🖨 Report
